OF SERIES · 2-POST & 4-POST OPEN-FRAME RACKS

Open access for cable-intensive infrastructure.

Fast-access 19-inch frames for labs, telecom, AV, structured cabling and service-heavy installations—available in seven heights and two support architectures.

Configure an OF rack ↗See all 14 models ↓

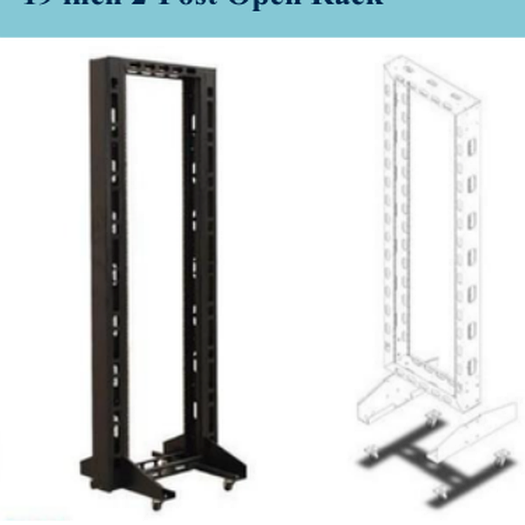

Infinity OF Series 2-post open-frame rack — OF-2P · cable-centric access

Infinity OF Series 4-post open-frame rack — OF-4P · four-point support

18–47USeven capacity options

2-post / 4-postSupport architecture

600 mmNominal width

Up to 150 kgNominal static load

SELECT BY EQUIPMENT DEPTH

Two frame types solve two different installation needs.

Choose OF-2P when cable access, patching and shallow equipment are the priority. Choose OF-4P when deeper chassis, shelves or four-point mounting require a second support plane. The ordered configuration then defines anchoring, cable management, grounding and mobility.

OF-2P

CABLE-CENTRIC CONFIGURATION

2-post open frame

The efficient choice for patch panels, telecom, AV and shallow equipment where fast front-and-rear access matters most.

Simple, low-complexity structure
Clear cable routing and service access
Ideal for frequent moves, adds and changes

OF-4P

DEEP-EQUIPMENT CONFIGURATION

4-post open frame

Front-and-rear mechanical support for deeper chassis, shelves and equipment designed for four-point mounting.

Two support planes for deeper equipment
Better shelf and rail integration
Suitable for equipment-room installations

OPEN-FRAME ARCHITECTURE

Eight decisions behind a stable, serviceable installation.

2-post access

Low-complexity frame for patching, telecom, AV and shallow equipment.

4-post support

Front-and-rear mounting for deeper or four-point-supported equipment.

Primary structure

2.0 mm steel platform with model-specific assembly and finish.

Installation stability

Anchoring, stabilizers and center of gravity evaluated for the ordered load.

Cable organization

Vertical managers, lacing bars, rings and grounding can be coordinated.

Equipment support

Fixed shelves, support rails and brackets selected around chassis depth.

Mobility options

Heavy-duty bases, leveling feet or caster kits according to site use.

Project delivery

Assembled or project-packed with labeled parts and documentation.

OF SERIES · SELECT A MODEL

Choose 2-post or 4-post, then select the height.

Each box opens a dedicated model page with construction, load, installation and accessory information.

18U2-post

2-POST OPEN FRAME

Select a model to review load, anchoring and accessory requirements.

STANDARD PRODUCT ENVELOPE

Technical highlights.

Mounting format: 19-inch equipment mounting
Capacity range: 18 / 22 / 27 / 32 / 37 / 42 / 47U
Frame types: 2-post and 4-post
Primary steel: 2.0 mm nominal
Nominal load: Up to 150 kg by ordered configuration
Installation: Floor anchoring or stabilized mobile base
Finish: Pretreatment and powder coating
Project scope: Cable, grounding, shelf and mobility accessories

OF SERIES

Open-frame model matrix

Select the 2-post configuration for cable-centric equipment and the 4-post configuration for deeper or four-point-mounted equipment.

Model family	Capacity	Width	Construction	Nominal load	Typical use
OF-2P18 / OF-4P18	18U	600 mm	2.0 mm primary steel	Up to 150 kg	Lab, AV and telecom benches
OF-2P22 / OF-4P22	22U	600 mm	2.0 mm primary steel	Up to 150 kg	Access-network and branch installations
OF-2P27 / OF-4P27	27U	600 mm	2.0 mm primary steel	Up to 150 kg	Telecom rooms and mixed patching
OF-2P32 / OF-4P32	32U	600 mm	2.0 mm primary steel	Up to 150 kg	Network distribution areas
OF-2P37 / OF-4P37	37U	600 mm	2.0 mm primary steel	Up to 150 kg	Equipment rooms with growth capacity
OF-2P42 / OF-4P42	42U	600 mm	2.0 mm primary steel	Up to 150 kg	Full-height open installations
OF-2P47 / OF-4P47	47U	600 mm	2.0 mm primary steel	Up to 150 kg	High-capacity cabling environments

RECOMMENDED ADD-ONS

Complete the frame around the equipment.

Heavy-duty baseCaster kitVertical cable managersLacing barsGrounding kitFloor anchoringWall anchoringEquipment shelvesStabilizer bracketsPrivate label

OPEN ACCESS. CLEAR SUPPORT. PROJECT-DEFINED STABILITY.

Choose the OF frame around equipment depth and service needs.

Share the equipment list, occupied U, chassis depth, weight, cable volume, anchoring method and accessory needs. Infinity will prepare the suitable 2-post or 4-post configuration.

Request OF configuration ↗
